Compressed air rollers

Moves circular objects with a diameter of at least 23.5 inches. For example: paper rolls, vehicles, airplanes, large steel pipes and cable reels.

The Easy Mover is pneumatic, which brings a smooth variable adjustment insensible to overload.

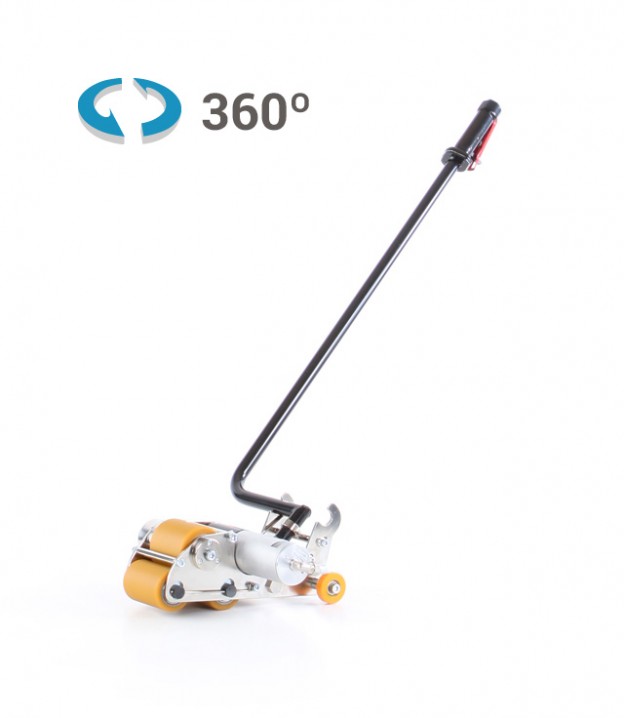

P_350B

P350B

Application: Paper rolls
Capacity: < 10 ton
Weight: 31 lbs
Force applied: 660 lbs
Maximum speed: 75 ft/min
Air pressure: 85 psi
Air volume: 23 cfm/min


P_350B

P1250B

Application: Paper rolls
Capacity: < 20 ton
Weight: 44 lbs
Force applied: 2640 lbs
Maximum speed: 82 ft/min
Air pressure: 85 psi
Air volume: 44 cfm/min


V_350B

V350B

Application: Vehicles
Capacity: < 15 ton
Weight: 31 lbs
Force applied: 660 lbs
Maximum speed: 75 ft/min
Air pressure: 85 psi
Air volume: 23 cfm/min


V_1250B

V1250B

Application: Vehicles
Capacity: < 25 ton
Weight: 44 lbs
Force applied: 2640 lbs
Maximum speed: 85 ft/min
Air pressure: 85 psi
Air volume: 44 cfm/min


F_1500B

F1500B

Application: Aircraft
Capacity: < 25 ton
Weight: 44 lbs
Force applied: 3300 lbs
Maximum speed: 56 ft/min
Air pressure: 85 psi
Air volume: 44 cfm/min


C_1500A

C1500B

Application: Cable reel wood
Capacity: < 50 ton
Weight: 52 lbs
Force applied: 3300 lbs
Maximum speed: 49 ft/min
Air pressure: 85 psi
Air volume: 44 cfm/min


CF_1500A

CF1500A

Application: Cable reel steel
Capacity: < 50 ton
Weight: 57 lbs
Force applied: 3300 lbs
Maximum speed: 49 lbs/min
Air pressure: 85 psi
Air volume: 44 cfm/min


P_1250BTW

P350BTW

Application: Tissue/soft rolls
Capacity: < 10 ton
Weight: 55 lbs
Force applied: 660 lbs
Maximum speed: 95 ft/min
Air pressure: 85 psi
Air volume: 23 cfm/min


P_1250BTW

P1250BTW

Application: Tissue/soft rolls
Capacity: < 20 ton
Weight: 57 lbs
Force applied: 1985 lbs
Maximum speed: 56 ft/min
Air pressure: 85 psi
Air volume: 44 cfm/min
