Compressed air push, pull & manuevre

The ARL model Easy Mover, has a forward and reverse movement, with dual revolving wheels to provide easy steering, enable versatile movement of fixtures, machines and wagons. The Easy Mover has a unique pneumatic bellows anchorage point system for easy adjustable work load coupling.

The Easy Mover is pneumatic, which brings a smooth variable adjustment insensible to overload.

[wr360popup name=”ARL_500A” width=”900px” height=”600px” config=”/wp-content/plugins/webrotate-360-product-viewer/360_assets/ARL_500A/ARL_500A.xml”]ARL_500A[/wr360popup]

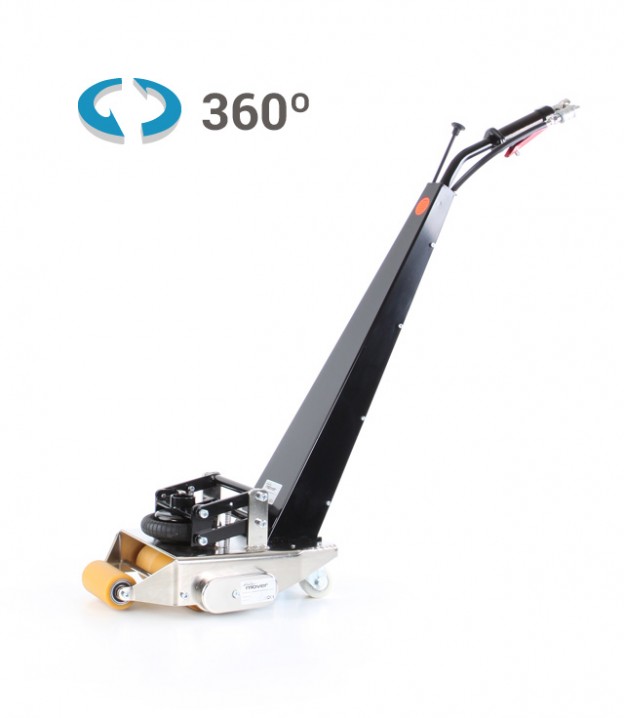

ARL500A – Reversible/lift

Application: Wagons
Capacity: < 15 ton
Weight: 69 lbs
Force applied: 1100 lbs
Maximum speed: 65 ft/min
Air pressure: 85 psi
Air volume: 23 cfm/min


[wr360popup name=”ARL_1200A” width=”900px” height=”600px” config=”/wp-content/plugins/webrotate-360-product-viewer/360_assets/ARL_1200A/ARL_1200A.xml”]ARL_1200A[/wr360popup]

ARL1200A – Reversible/lift

Application: Wagons
Capacity: < 25 ton
Weight: 99 lbs
Force applied: 1980 lbs
Maximum speed: 56 ft/min
Air pressure: 85 psi
Air volume: 44 cfm/min
